HSD-SLH
Automatic Sliding Table Synchronous Fusion Machine: TPU Belt Welding & Heat Sealing
Automatic Sliding Table Synchronous Fusion Machine: High-precision, efficient high-frequency TPU belt welding/heat sealing system. Supports left-right slide welding—ideal for toothbrush manufacturing, phone leather cases, seat straps, cooling pads, waterproof bags, fishing buckets & hot press welding.
Quantity
Contact Now
add to cart
         Hansweld HSD-SLH Automatic Slide Table High Frequency Welding and Cutting Machine – HIGH FREQUENCY WELDING MACHINE with Integrated Trimming Function

The Hanswend HSD-SLH is a heavy‑duty HIGH FREQUENCY WELDING MACHINE engineered for simultaneous welding and trimming (cutting). Unlike standard HF WELDING MACHINE which only seals materials, this HF WELDING AND CUTTING MACHINE adopts a two‑stage pressure system—first high‑frequency welding, then a high‑pressure hydraulic boost to complete the cutting in one operation. This"one‑step molding"process eliminates secondary trimming, saves labor, and ensures clean, burr‑free cut edges with consistent product quality.

Operating at 27.12 MHz with power options from 5 kW to 12 kW and maximum cutting pressure up to 45T, the HSD‑SHL features a dual‑station automatic slide table that allows operators to load/unload on one station while welding/cutting proceeds on the other, maximizing productivity. Equipped with NL‑5557 spark protection system, high‑frequency shielding, and CE certification.

This machine is ideal for TPU WELDING, PVC, PET, PETG, APET, GAG, EVA, and PU materials, with precise applications including:

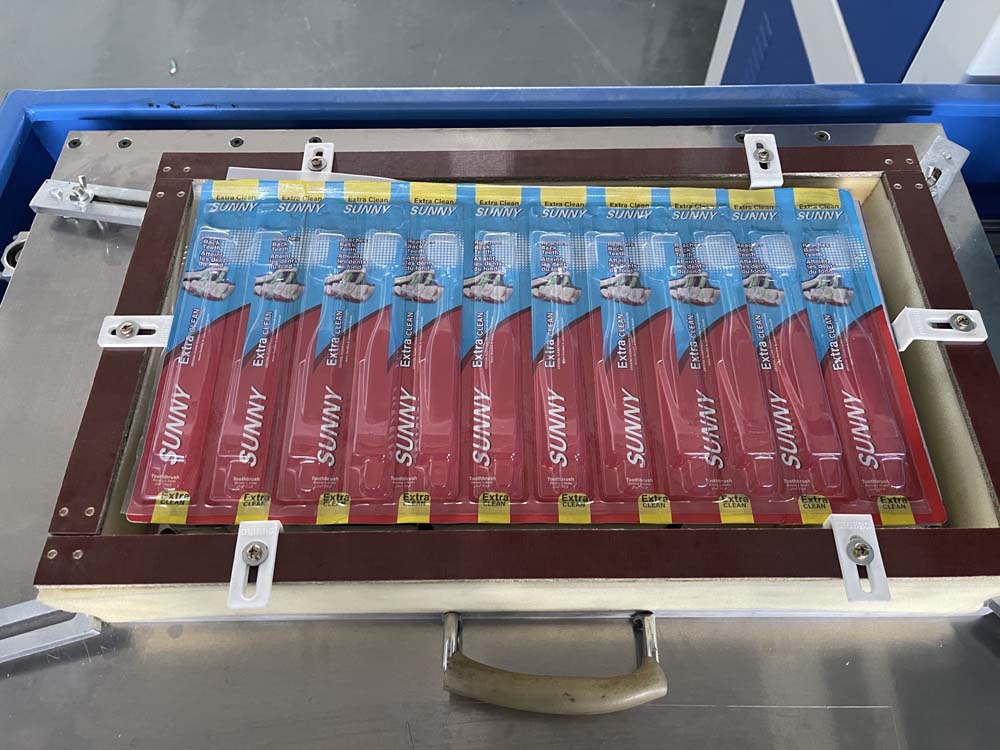

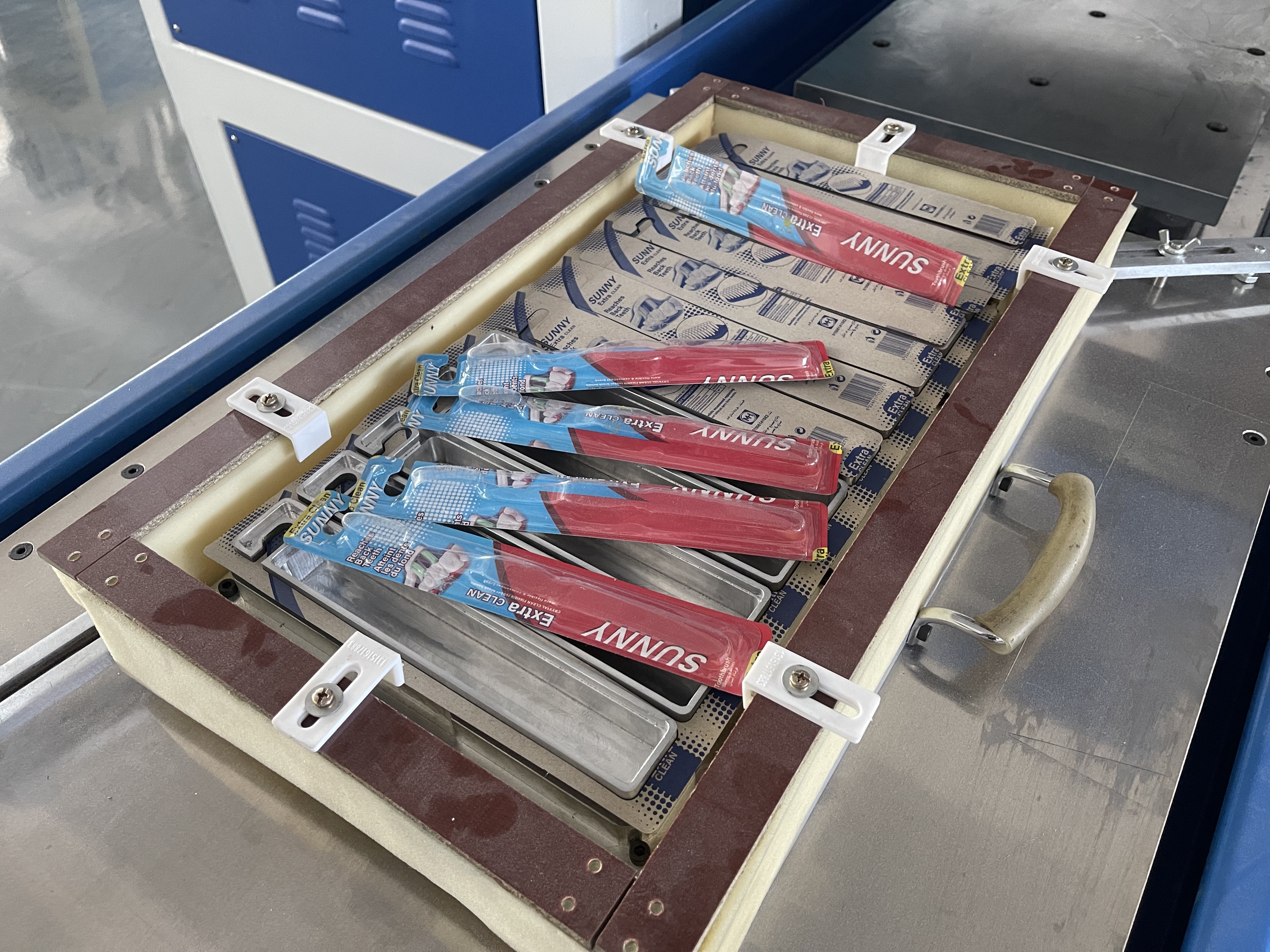

  • Blister packaging: PETG ,GAG, APET , double‑sided clamshell packaging for toothbrushes, batteries, USB drives, cosmetics, and stationery items

  • Medical products: blood bags, IV fluid bags, urine bags, ice packs, and heat packs with trimmed edges

  • Automotive components: sun visors, door armrests, seat ventilation bags, acoustic foam liners, and floor mats with clean‑cut edges

  • Leather goods & accessories: watch straps, belts, phone cases, tablet covers, shoe uppers, and leather embossing with simultaneous edge trimming

  • Paper‑blister packaging: blister card sealing for hanging cards and double‑sided paper blister packs

  • Textile & composite materials: EVA cloth, synthetic leather, reflective garments, and coated fabrics requiring welded and trimmed edges

With stable output, high efficiency, and integrated welding‑cutting capability, the Hanswend HSD‑SLH Automatic Slide Table HF WELDING AND CUTTING MACHINE is the optimal choice for high‑volume production requiring both sealing and trimming in a single operation.
