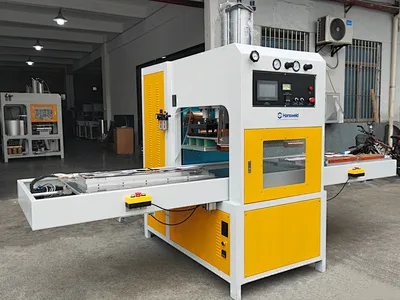

HSD-15KW-30T HF Welding and Cutting machine

HSD-15KW-30T

This is HF Welding Machine with extra high pressure ( From 20T - 45 T ) for Cutting

Quantity

Contact Now

add to cart

Model	HSD-15KW-30T
Power	15KW
Input Power	20KVA
Frequency	27.12Mhz
Power supply voltage	380V
size of Upper electrode	400*600MM or Customized
size of bottom electrode	500*700MM or Customized
Spark protection	NL-5557
Rectifier	Silicon diode
Oscillator tube	8T85RB
Gap of electrodes	250MM
Cylinder stroke	150MM
Max welding surface each work cycle	350Cm2
Welding time	0-30s（Adjustable）
